High Stiffness, Corrosion Resistant 100% 3K Carbon Fiber Tube | Strong, Lightweight

Quantità di ordine minimo : Negoziabile Prezzo : negotiable
Imballaggi particolari : Commercio di cartone ondulato normale per la spedizione internazionale Tempi di consegna : 7 giorni lavorativi dopo aver ricevuto la retribuzione dell'ordine
Termini di pagamento : T/T, Western Union, L/C Capacità di alimentazione : 1500 pezzi di mese
Luogo di origine: Cina Marca: Tanku
Certificazione: SGS, ROHS Numero di modello: OEM

Informazioni dettagliate

Nome del prodotto: Metropolitana della fibra del carbonio Materiale: saia Matte Finish della fibra del carbonio avvolta rotolo 3K
Trattamento superficiale: 3K, Twill opaco Caratteristica: Peso leggero ad alta resistenza
Range OD: 5 mm-100 mm Lunghezza: Tagliare a qualsiasi dimensione in base alle esigenze
H Content (%): 0 Ash Content (%): 0

Descrizione di prodotto

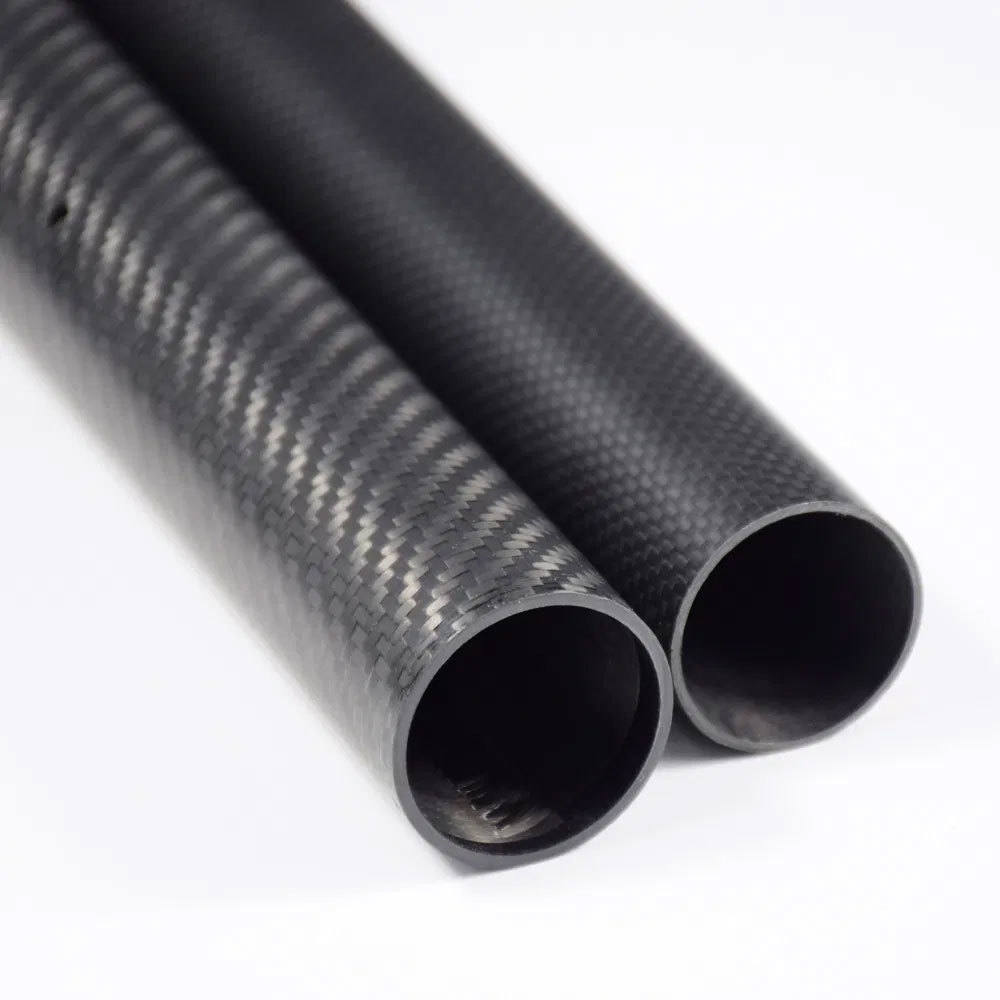

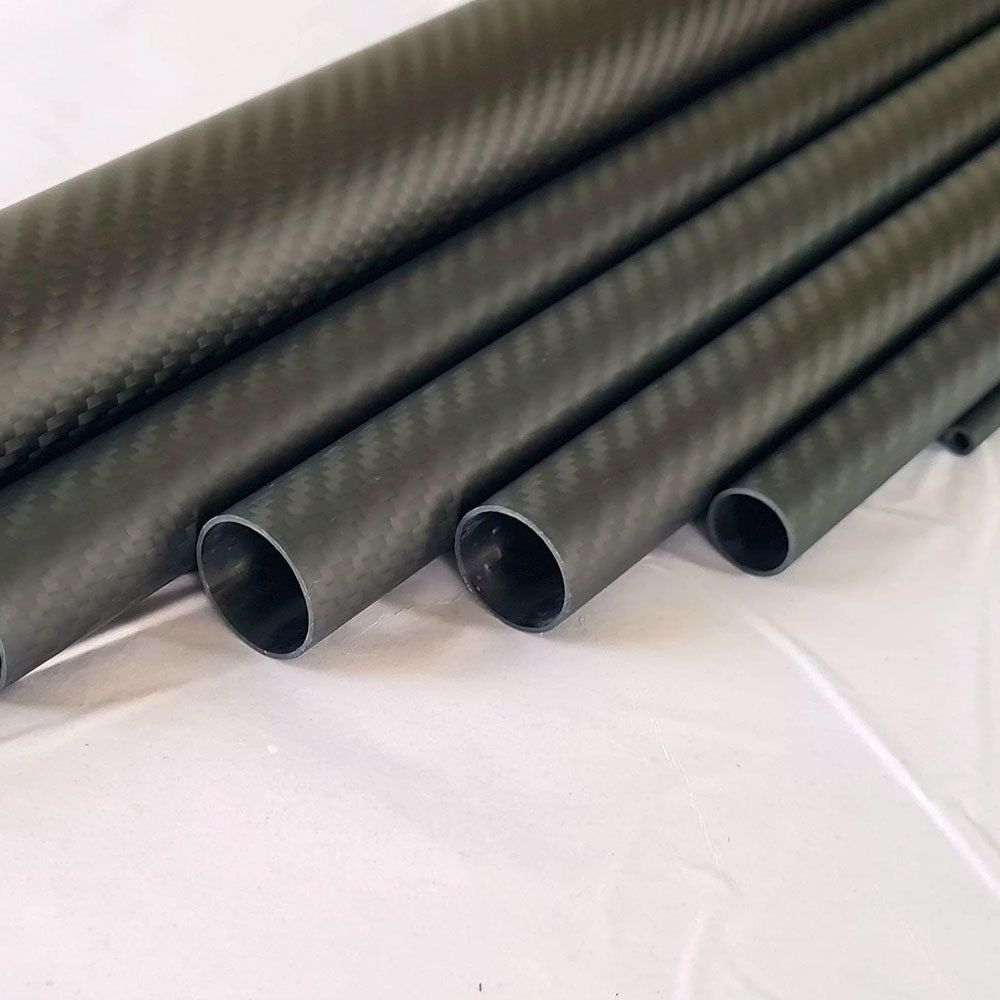

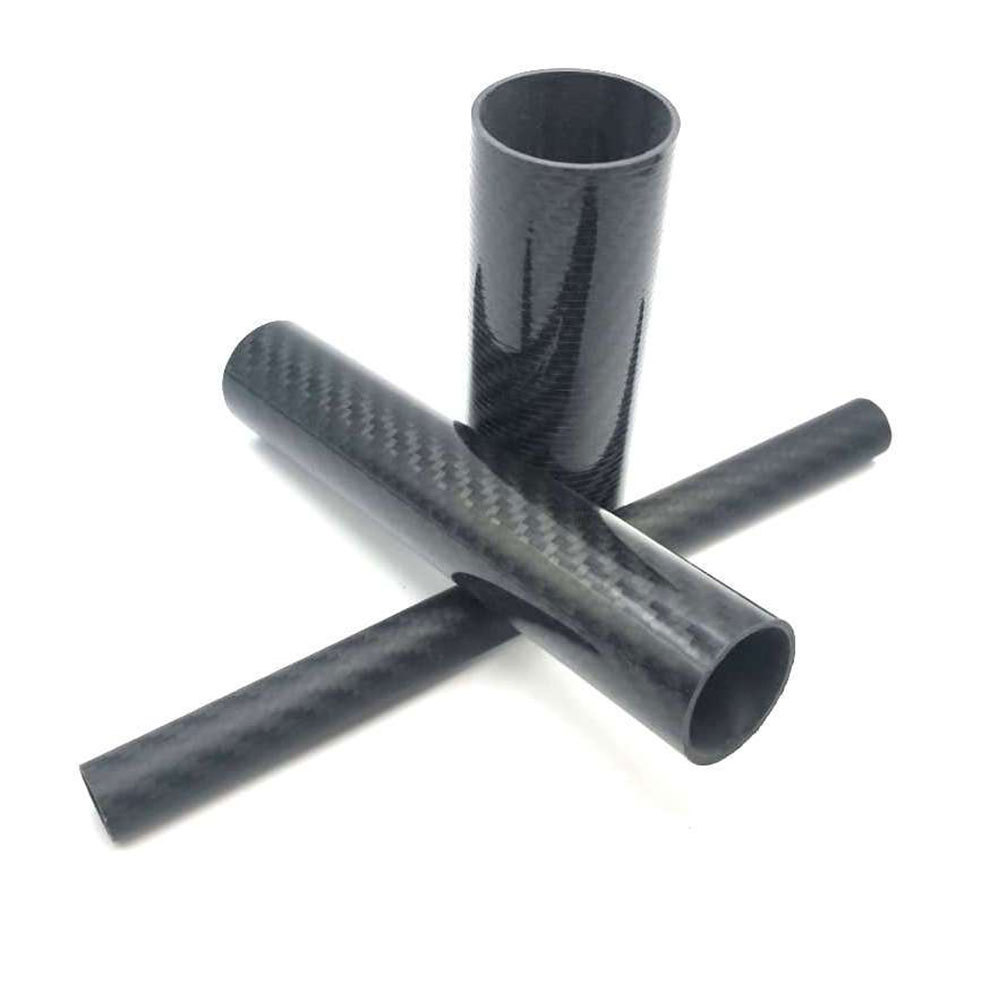

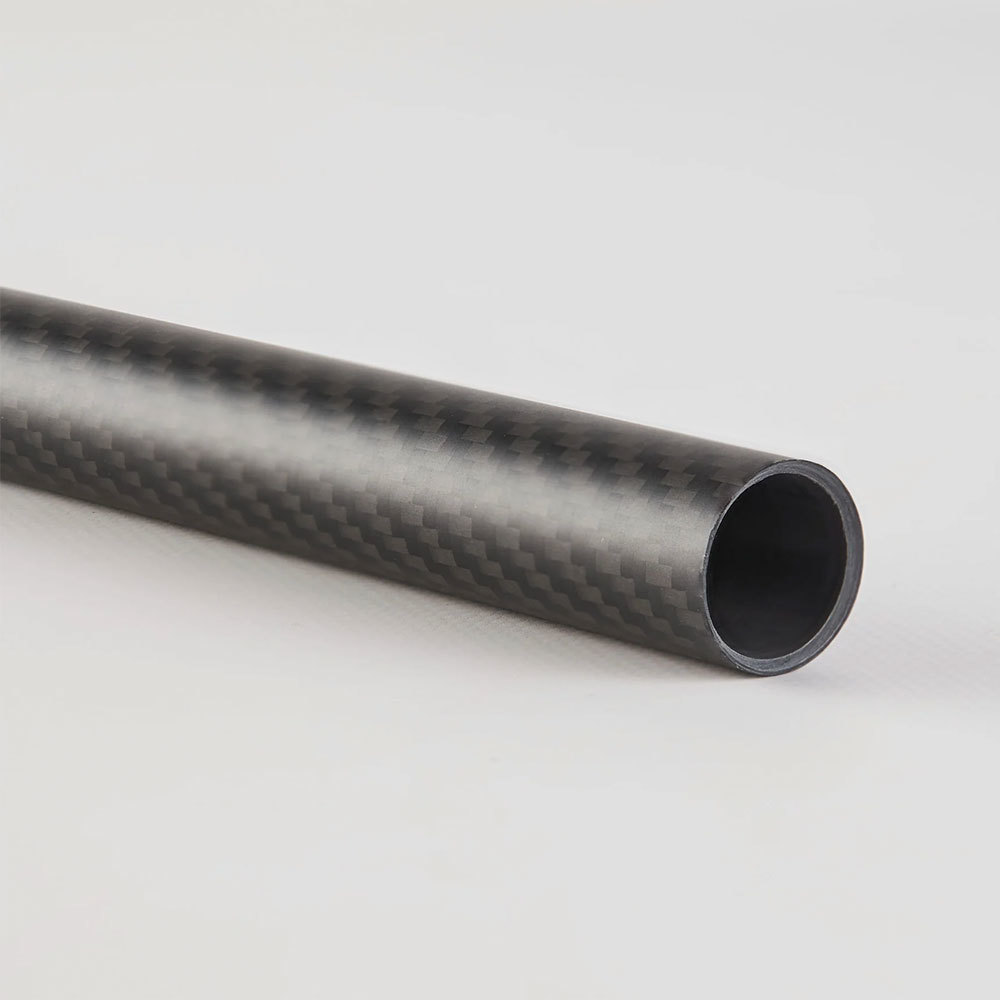

High Stiffness, Corrosion Resistant 100% 3K Carbon Fiber Tube | Strong, Lightweight



Carbon fiber is the ultimate material for the fire staff and other long props. Perfectly straight, incredibly stiff, and ultra-lightweight, this material is ideal for a contact staff. It won't bend and will far outlast aluminum construction. The direction of the fibers and the thickness of the wall are used to minimize flexing, making it much more responsive and eliminating wobbles. The matte finish is ideal for ensuring the grip material stays affixed to the staff and never causes problems. These tubes are perfect for the DIY warrior building their staff.



Made with aerospace-quality carbon fiber cloth and convolute wrapped using a tight 3k 8 harness satin weave common in aerospace applications, our tubes have a fiber/resin ratio of 60/40% by weight. With 0/90 degree fiber orientation, they are cured under pressure and at high temperatures, ensuring strength and durability. After curing, the tubes are fine-sanded and almost ready for painting. Primers and prep required. Upgrade to the strength of aerospace technology with our carbon fiber tubes.



We specialize in the production of carbon fiber pipes, plates, and other carbon fiber products widely used in the defense industry, aerospace, sports, transportation, and other related industries.



All of our products are produced in our own workshop, made of 100% carbon fiber. We can supply carbon fiber tubes with any specifications, with outer diameters from 4mm to 150 mm and any length, by precise customization to your requirements.



Feature

High Tensile Strength / Low Weight / Excellent Structural Properties / Low Density

Resin

Epoxy Resin

Weaving

3K Plain/ Twill/ Unidirectional

OD Range

5mm-100mm

Length

Cut at any size according to the requirement

Finish

Glossy/ Matte/50% Glossy

Color

Customized Color

ODM/OEM Services

Bonding, drilling, punching, assembling with other materials, and precision CNC cutting are also available.

Applications

Sailing, Yacht, Sports Equipment, Telecommunications, Drones, Intelligent Industrial Robot, New-energy Car.....



What are carbon fiber tubes used for?



Carbon fiber tubes are used in a wide range of applications, including tactical ladders, systems, rods, and beams. Carbon fiber provides low weight, and better mechanical properties over conventional materials like aluminum, and steel.



Are carbon fiber tubes strong?



Carbon fiber tubes are used in numerous applications like tactical ladders, trusses, beams, and more. Carbon fiber is typically chosen over traditional materials such as aluminum, steel, and titanium because of the following properties: High strength and stiffness to weight.



Do carbon fiber tubes bend?



Our carbon fiber tubing is built using a thermoset epoxy resin. This means that once cured the epoxy never returns to a liquid state. If you tried to bend our tubing it would break with enough applied force but it will not bend. Carbon fiber/epoxy composite is very stiff!



High Stiffness, Corrosion Resistant 100% 3K Carbon Fiber Tube | Strong, Lightweight 0

High Stiffness, Corrosion Resistant 100% 3K Carbon Fiber Tube | Strong, Lightweight 1High Stiffness, Corrosion Resistant 100% 3K Carbon Fiber Tube | Strong, Lightweight 2High Stiffness, Corrosion Resistant 100% 3K Carbon Fiber Tube | Strong, Lightweight 3
