Lightweight Pultruded Carbon Fiber Tube with High Longitudinal Strength and Corrosion Resistance

Descrizione di prodotto

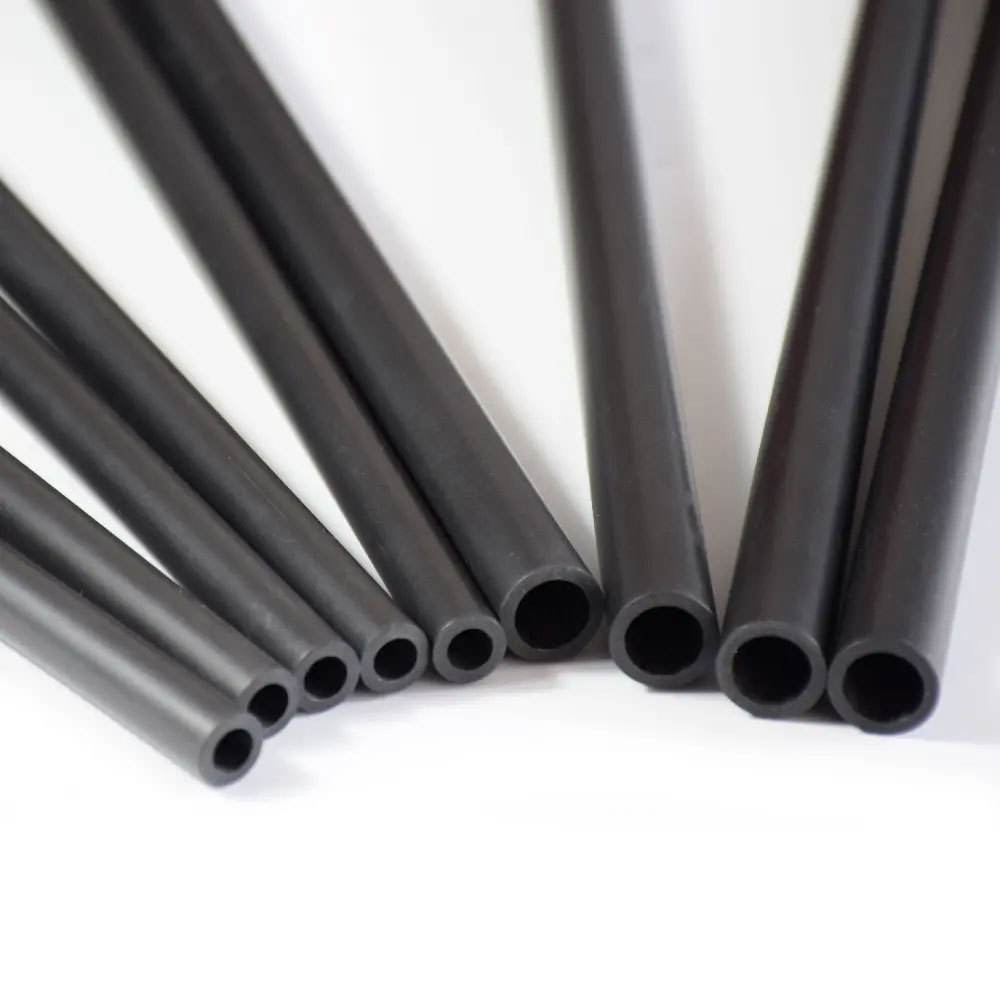

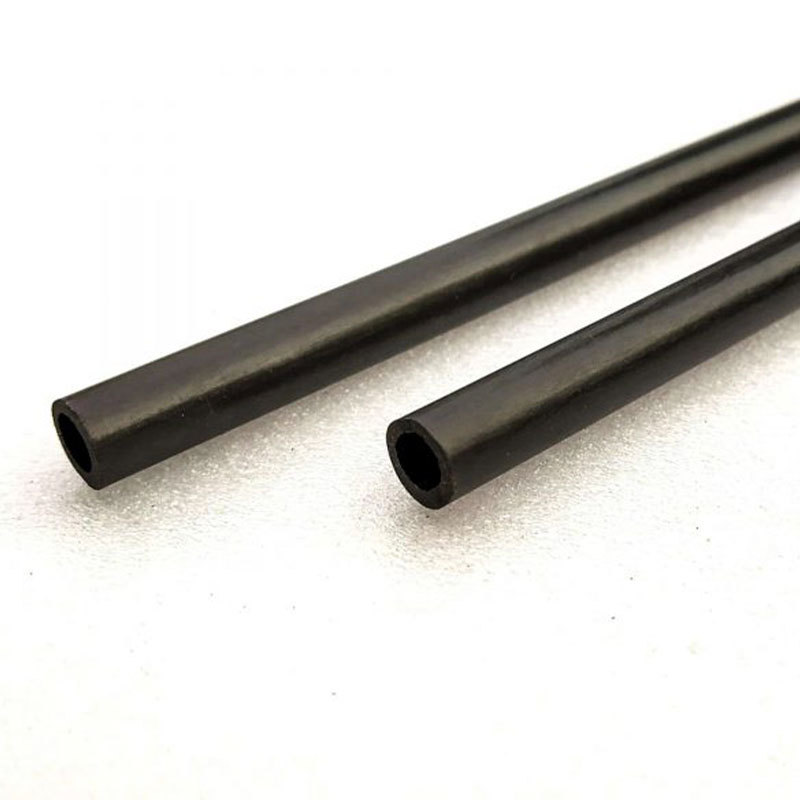

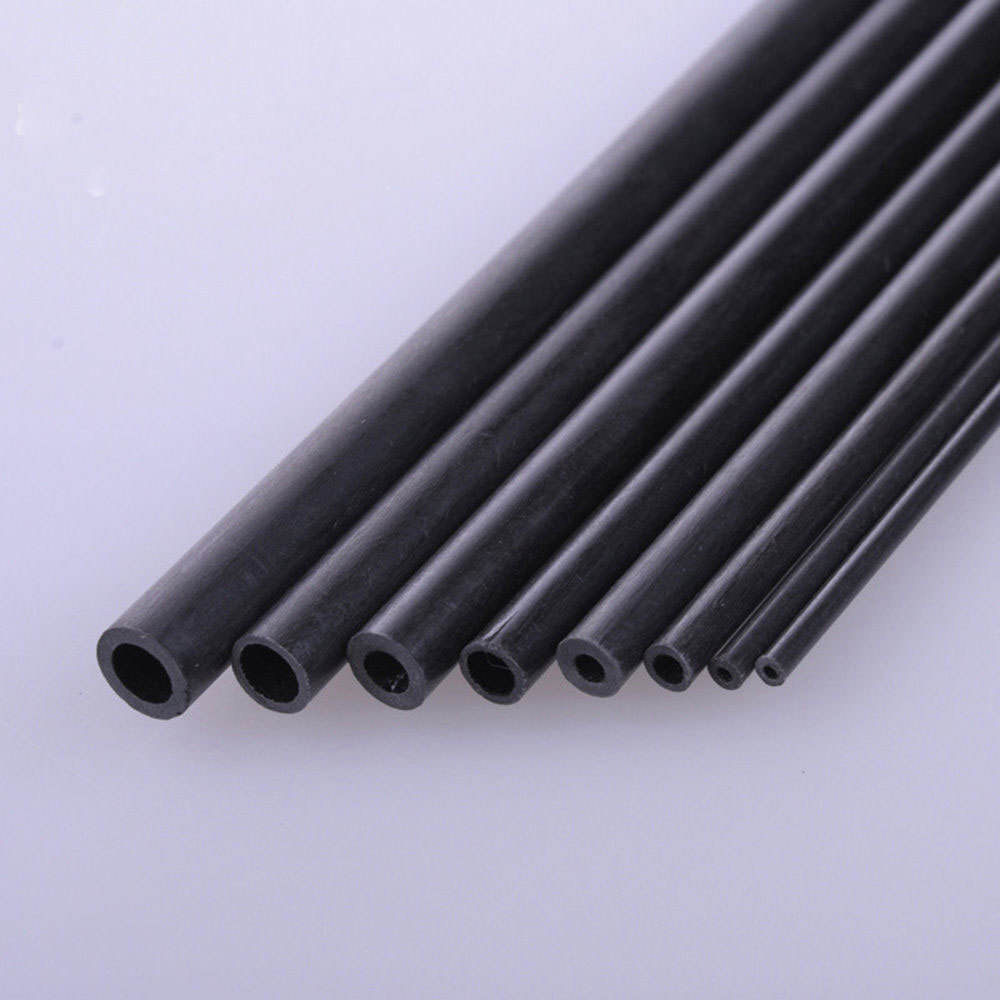

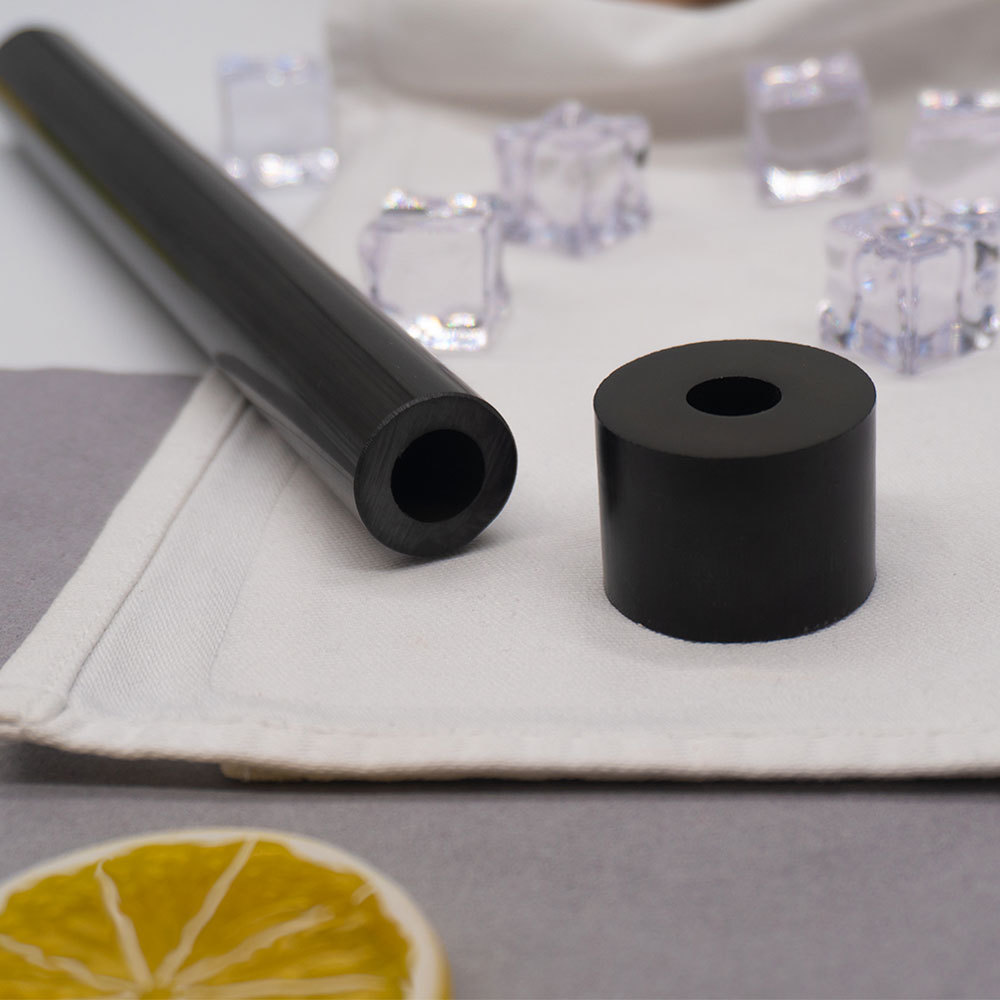

Heavy Duty Industrial 3K Pultruded Carbon Fiber Tube - Lightweight and Strong

A Pultruded Carbon Fiber Tube is a continuous-fiber composite tube manufactured using the pultrusion process, where carbon fibers are pulled through a resin bath and a heated die to create a constant cross-section profile. This process ensures excellent fiber alignment, high longitudinal strength, and consistent dimensional accuracy.

Pultruded carbon fiber tubes are ideal for structural applications requiring high stiffness, lightweight performance, and cost efficiency in large-volume production.

Pultruded tubes are made by pulling continuous strands of carbon fiber through a ‘die’; as they are pulled through, they are coated in epoxy resin and as they come out of the die the epoxy resin is cured at high speed. Tubes (or rods, or strips)made in this way have all of their fiber running lengthwise down the tube whichmeans that they are very strong along their length (very stiff if you try to bend them) with less stiffness inthe other direction.

Carbon Fiber Pultruded Tubes are extremely stiff and lightweight tubes manufactured with standard modulus carbon fibers. The unidirectional fiber orientation offers incredible linear strength and is ideal in bending and tension applications.

All our Pultruded carbon fiber tubes are made using 12K carbon fiber and epoxy/vinyl-ester resin. These pultruded carbon fiber tubes are available in square, round, and rectangular shapes.

Key Features

• High Longitudinal Strength: Continuous unidirectional fibers maximize tensile and bending strength along the tube length.
• Excellent Stiffness: Superior rigidity compared to aluminum with significantly lower weight.
• Lightweight Construction: Outstanding strength-to-weight ratio for structural reinforcement.
• Consistent Dimensions: Precise outer diameter, inner diameter, and wall thickness throughout the entire length.
• Cost-Effective for Mass Production: Efficient manufacturing process suitable for large quantities.
• Corrosion & Chemical Resistance: Rust-free and resistant to moisture and harsh environments.

Low Thermal Expansion: Maintains stability under temperature fluctuations.

Applications

• Industrial structural supports
• Automation and robotics systems
• UAV and drone arms
• Sporting goods
• Marine components
• Aerospace structural parts
• Framework reinforcement

Our Service:

1. It ensures a year of quality assurance and 24-hour online customer service.
2. Protection of your sales area, ideas of design, and all your private information.
3. Request for samples is accepted.
4. Drilling and slotting are accepted.
5. We guarantee the products to be manufactured with the finest materials and mature techniques.
All tubes can be repaired at no charge if returned to us, postage prepaid, within one year.
