Polished Surface Carbon Fiber Plate – Lightweight and Corrosion Resistant for High-Performance Applications

Descrizione di prodotto

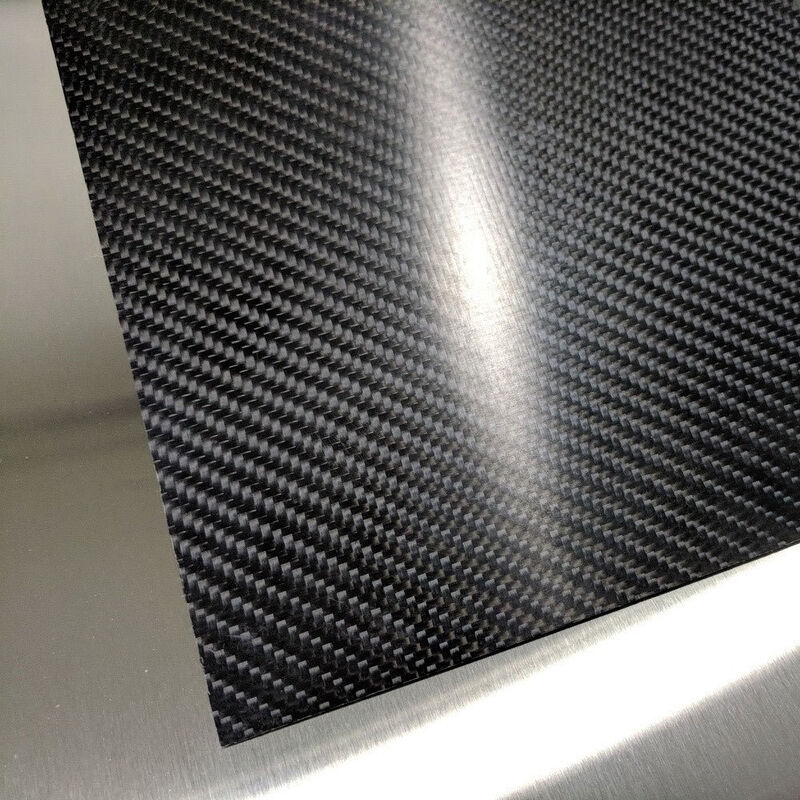

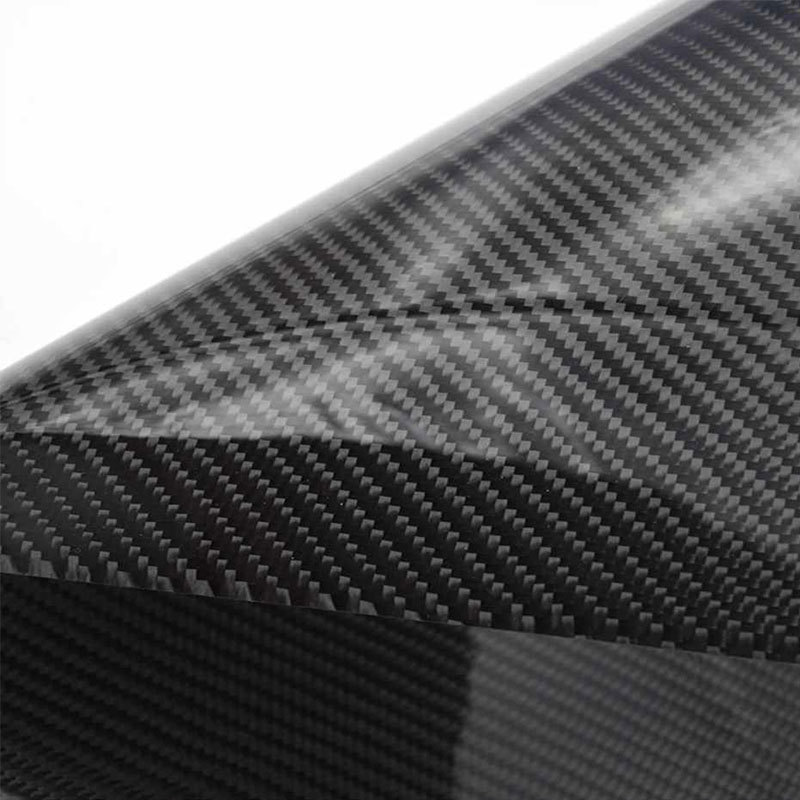

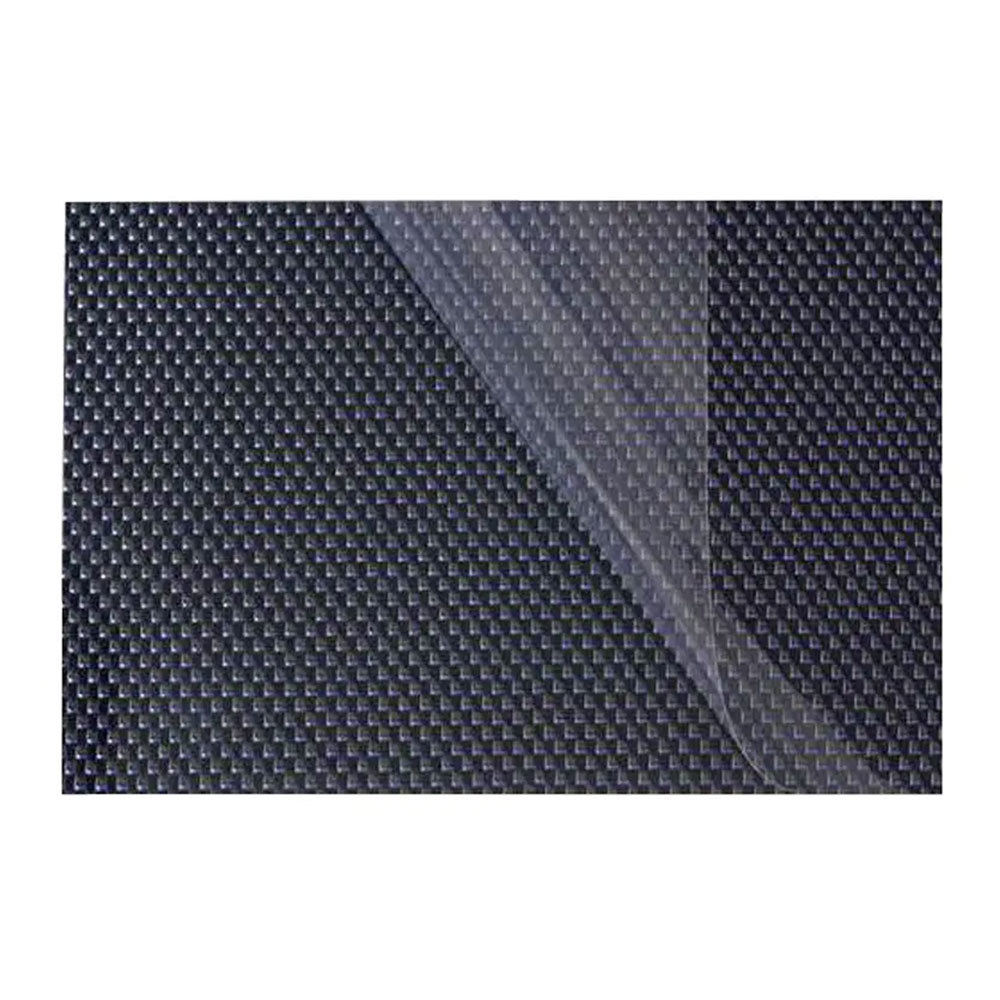

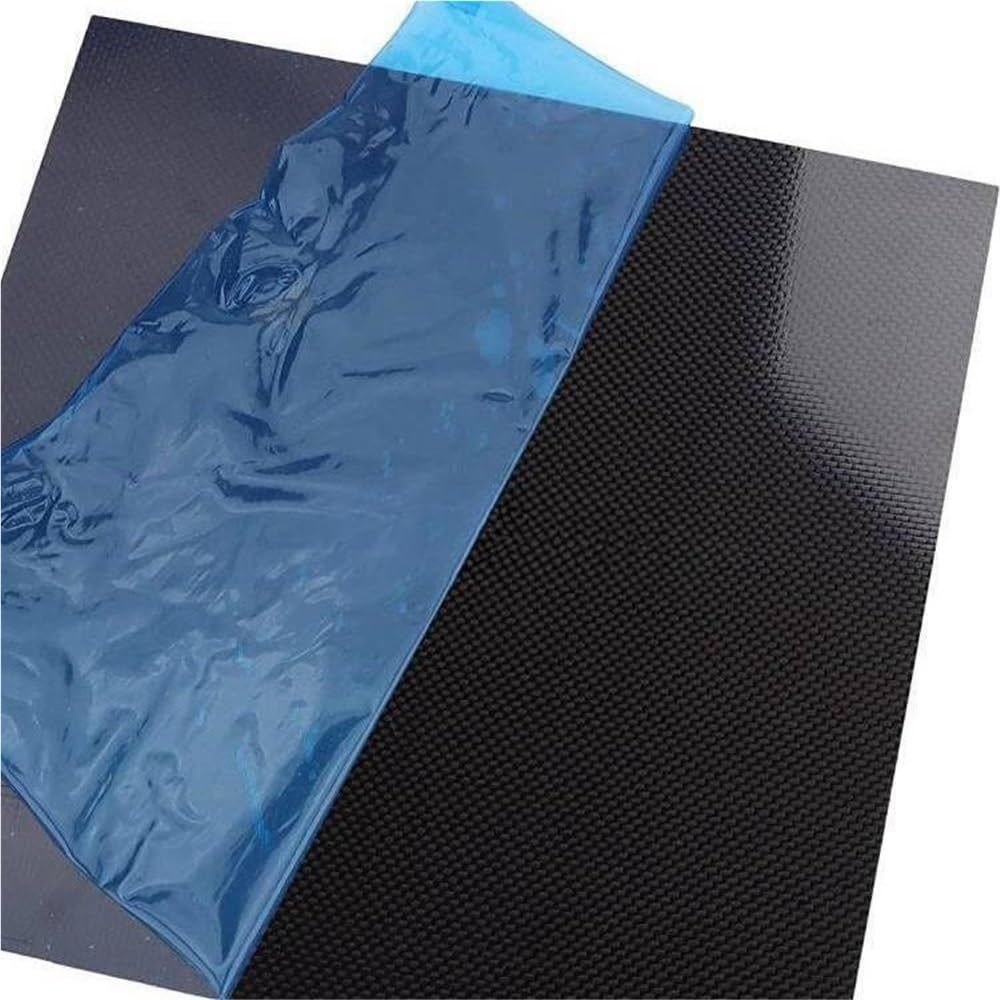

Polished 3K Carbon Fiber Plate – Lightweight, Durable & Corrosion Resistant

The Polished Carbon Fiber Plate is a high-performance composite panel engineered to deliver exceptional strength, lightweight performance, and a refined, mirror-smooth surface finish. Manufactured from woven carbon fiber reinforced with an advanced epoxy resin system, the plate is carefully polished to enhance surface smoothness, depth, and visual clarity of the carbon weave.

This plate is produced by stacking multiple layers of high-quality carbon fiber fabric and curing them under controlled heat and pressure to form a dense, void-free composite. After curing, the surface undergoes precision polishing to achieve a smooth, glossy finish that improves appearance while maintaining structural integrity.

Key Performance Features

• High Strength-to-Weight Ratio: Delivers superior mechanical performance with minimal mass
• Polished Surface Finish: Smooth, refined appearance ideal for visible and decorative applications
• Excellent Stiffness & Rigidity: Maintains shape under bending, compression, and load
• Fatigue Resistance: Performs reliably under repeated or cyclic stresses
• Corrosion & Chemical Resistance: Resistant to moisture, oils, fuels, and most industrial chemicals
• Thermal Stability: Low thermal expansion ensures dimensional accuracy

Surface Finish & Appearance

• Finish Type: Polished high-gloss surface
• Weave Options: 3K or 12K carbon fiber, plain or twill weave
• Surface Quality: Smooth, uniform, and visually consistent
• Optional Coatings: UV-resistant clear coating for enhanced durability

Available Specifications

• Thickness Range: Typically 0.5 mm to 10 mm+
• Plate Size: Standard sheet sizes or custom-cut dimensions
• Resin System: Structural epoxy (high-temperature options available)

Polished carbon fiber plates can be cut, drilled, milled, or CNC-machined using appropriate carbide or diamond tools. Careful machining preserves the polished surface and ensures clean edges, making the plate suitable for precision assemblies and custom fabrication.

Applications

• Automotive and motorsport panels, interior trims, and covers
• Aerospace components and UAV/drone structures
• Robotics, automation, and industrial machinery parts
• Consumer electronics housings and decorative panels
• Furniture, architectural elements, and custom design projects

Carbon Fiber Sheet Plate Specification:
