400X500MM 100% 3K Carbon Fiber Plate Sheet (Glossy/Matte Finish) 0.5-4MM Thickness

Descrizione di prodotto

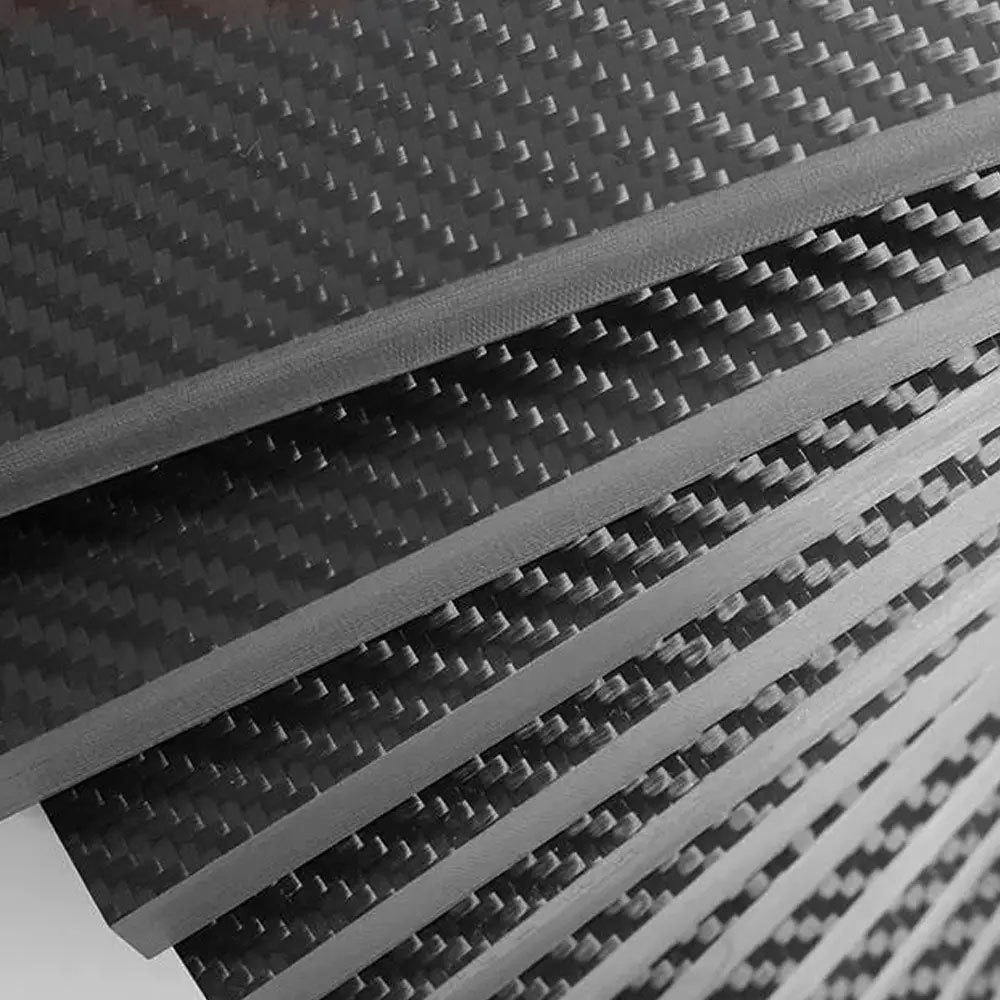

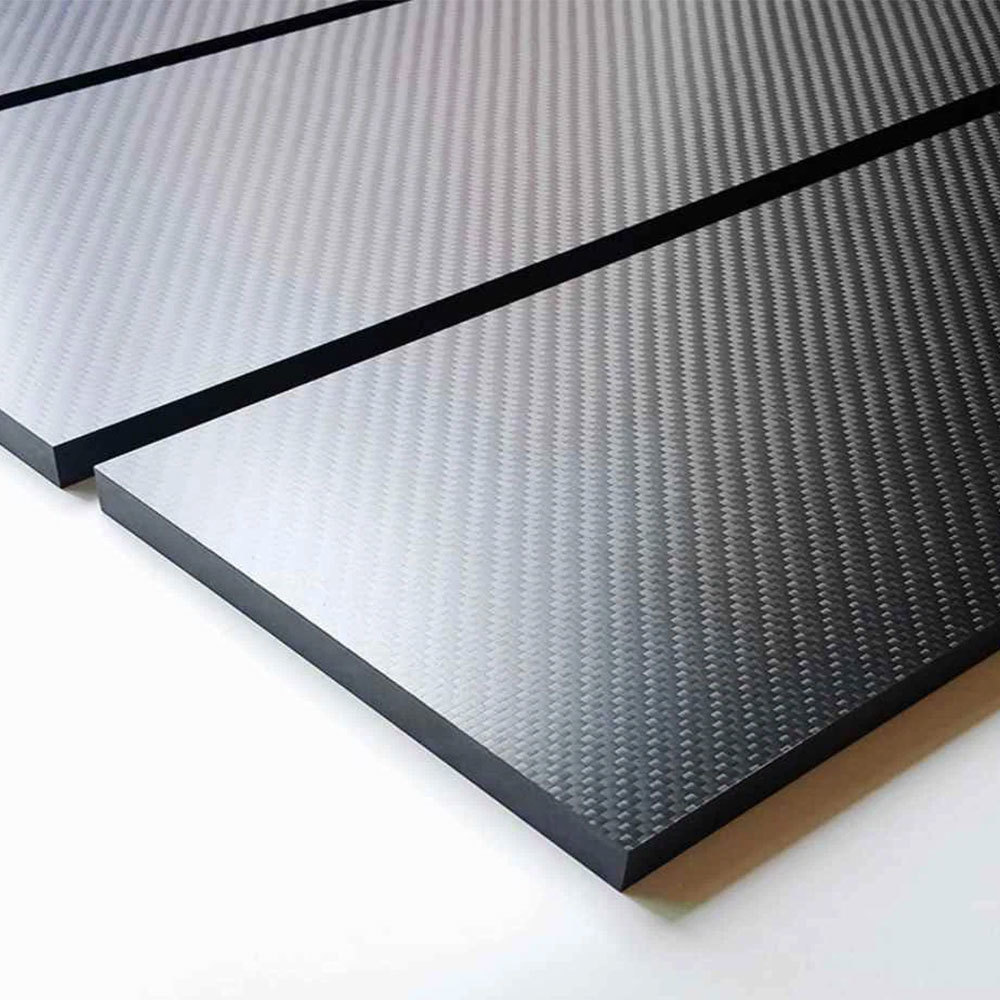

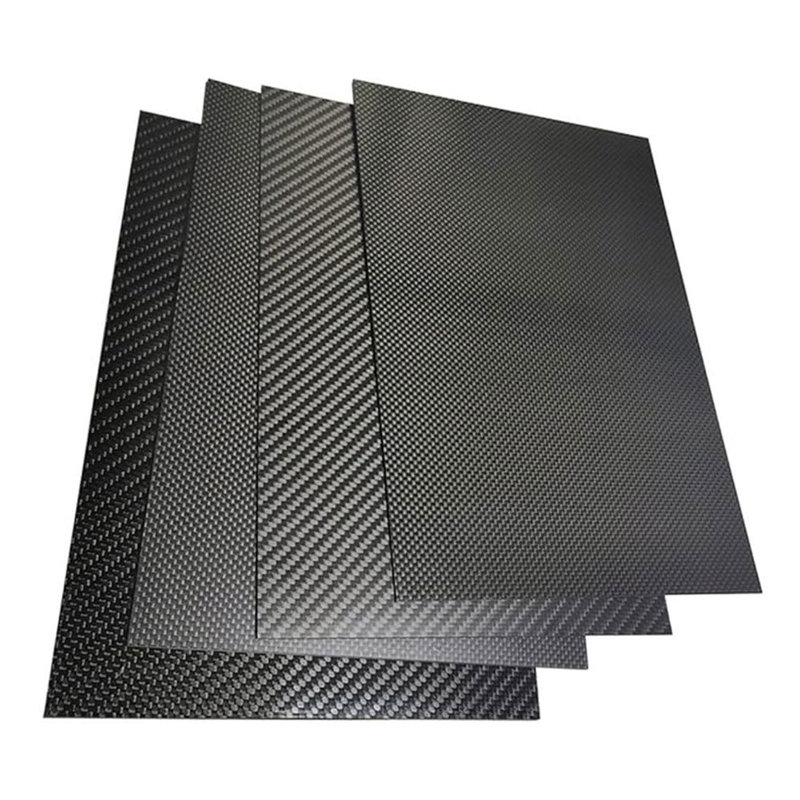

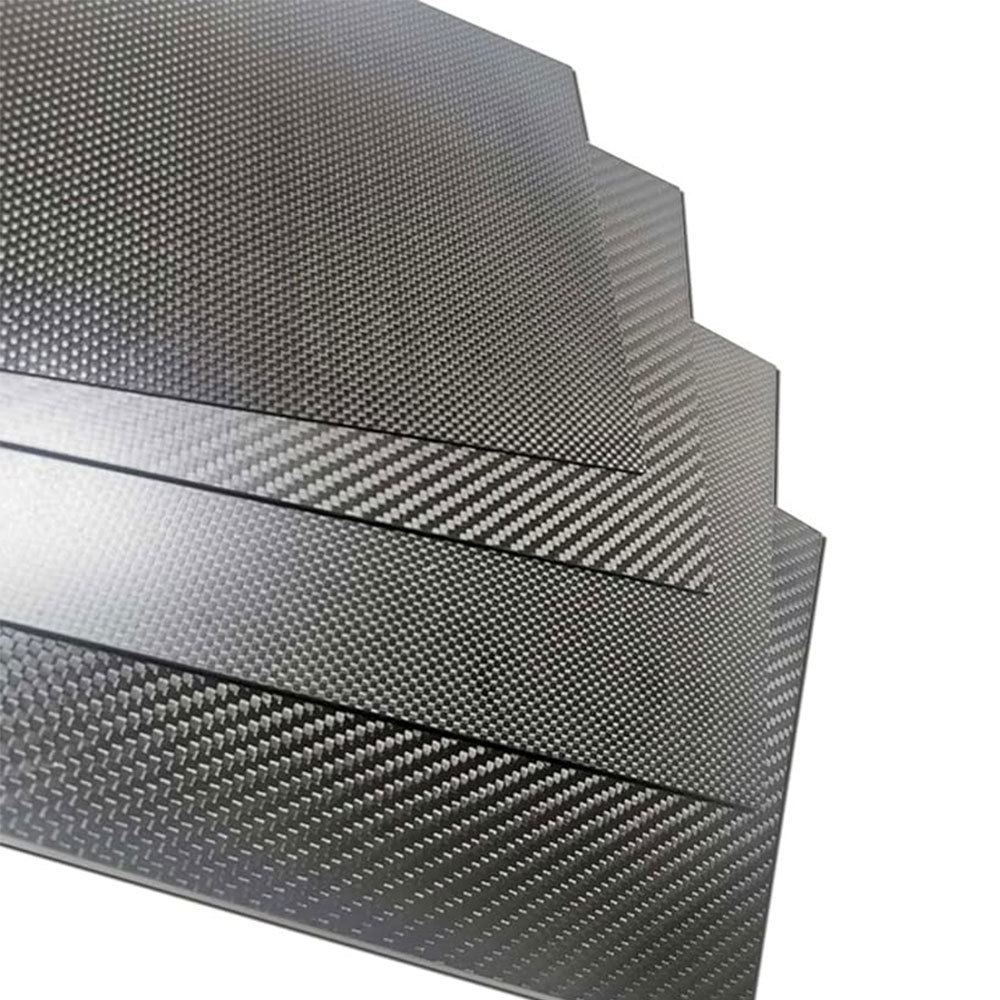

400X500MM 100% 3K Carbon Fiber Plate Sheet (Glossy/Matte Finish) 0.5-4MM Thickness

Matte carbon fiber plates are made from high-strength carbon fiber fabric and epoxy resin, featuring a non-reflective, elegant matte surface. Unlike glossy finishes, the matte texture gives a subtle and professional look while maintaining the same exceptional mechanical performance. These plates are lightweight, rigid, and corrosion-resistant, making them ideal for engineering, automotive, drone, and sports equipment applications.

For applications requiring material that is tough and durable, yet extremely lightweight, Hornet Plates, made of industrial-grade carbon fiber, are the perfect solution. At its strongest, carbon fiber is 10 times stronger than steel, yet 5 times lighter. The strongest carbon fiber is also 8 times stronger than aluminum, but 1.5 times lighter. These unique properties make carbon fiber perfect for a wide variety of commercial uses.

In addition to its excellent strength-to-weight ratio, carbon fiber resists corrosion and boasts a low CTE (Coefficient of Thermal Expansion). It also tolerates high heat and resistance, has flexible thermal and electrical properties, and works well with a wide variety of other materials.

We mainly offer 2 kinds of solid carbon fiber sheets. The first is a quasi-isotropic carbon fiberboard consisting of 90-degree and 45-degree fabrics. Another style is non-quasi-isotropic, where twill weave is in the direction of 0°/90°. XC carbon fiber sheets are all made from 100% carbon fiber fabric imported from Japan. Flawless weave on different surfaces for option, including plain weave, 2x2 weave, glossy, and matte.

The carbon fiber plate is specially applied for FPV, RC plane, auto body, etc. In recent years, wrapping carbon fiber reinforced polymer sheet (CFRP) and bonding angle steel are two common methods in reinforced concrete columns reinforcement engineering nowadays.

XC carbon fiber manufactures carbon sheet by the wet process. The carbon fiber fabric is placed in a precast mold at first, then we use vacuum pressure to inject the resin into the mold and combine it with the carbon fiber. Because the resin is infiltrated when carbon fiber cloth is fabricated, the combination of them is great, and they have high proportional control. We'll get high quality & precise carbon sheet after high temperature and high pressure.

Key Features

• Matte Finish: Smooth, non-glossy surface that reduces glare and fingerprints.
• High Strength-to-Weight Ratio: Offers superior rigidity while remaining extremely lightweight.
• Durable Structure: Resistant to wear, chemicals, and environmental corrosion.
• Precision Machining: Can be CNC cut or drilled with tight tolerances for custom projects.
• Aesthetic Appeal: The muted carbon weave provides a refined, modern look.

Applications

Drone frames and RC model parts
Automotive interior and exterior components
Industrial panels and brackets
Sports equipment and protective gear
Decorative and structural design projects

Carbon Fiber Sheet Plate Specification:
